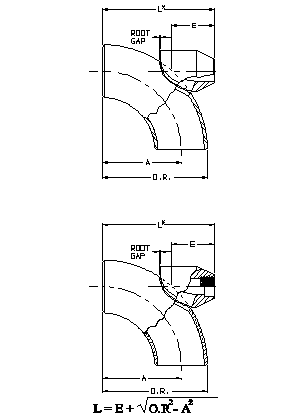

| ( For 90
Degree Long Radius Pipe Elbows ) |
Outlet
Size
DN |
Dimensions-Millimeters |
| E |
| Standard |
Extra
Heavy |
Wgt (Kgs) |
| 6 |
41 |
41 |
0.22 |
| 8 |
41 |
41 |
0.23 |
| 10 |
41 |
41 |
0.24 |
| 15 |
48 |
48 |
0.45 |
| 20 |
57 |
57 |
0.57 |
| 25 |
64 |
64 |
0.63 |
| 32 |
68 |
68 |
0.69 |
| 40 |
79 |
79 |
1.25 |
| 50 |
87 |
87 |
2.13 |
| 65 |
98 |
98 |
2.97 |
| 80 |
121 |
121 |
5.58 |
| 90 |
159 |
179 |
11.00 |
| 100 |
197 |
225 |
27.22 |
| 125 |
233 |
252 |
41.05 |
| 150 |
267 |
291 |
54.88 |
3000 & 6000 class
TD & SW also available
|
