For tubing type K, L, and M tubing, ASME SB/B98
UNS C65500 Alloy A
Outlet
Size
NPS |

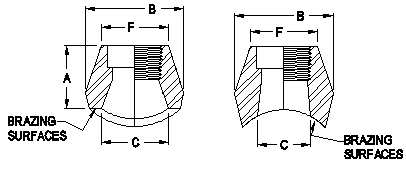

Dimensions |
| A |
B |
C |
Brazing
Surface |
F-Min
MIL-F-1183 |
| 1/4 |
11/16 |
1 |
9/16 |
0.188 |
0.700 |
| 3/8 |
13/16 |
1-1/4 |
3/4 |
0.190 |
0.855 |
| 1/2 |
13/16 |
1-1/4 |
3/4 |
0.190 |
0.855 |
| 3/4 |
1 |
1-7/16 |
7/8 |
0.220 |
1.020 |
| 1 |
1-1/16 |
1-3/4 |
1-1/8 |
0.240 |
1.250 |
| 1-1/4 |
1-1/4 |
2-1/8 |
1-7/16 |
0.270 |
1.535 |
| 1-1/2 |
1-5/16 |
2-9/16 |
1-3/4 |
0.300 |
1.900 |
| 2 |
1-3/8 |
2-7/8 |
2 |
0.330 |
2.160 |
| 2-1/2 |
1-1/2 |
3-1/2 |
2-9/16 |
0.360 |
2.675 |
| 3 |
1-13/16 |
4-1/8 |
3 |
0.384 |
3.215 |
| 4 |
2-1/8 |
5-1/2 |
4-5/16 |
0.437 |
4.400 |
|
For IPS pipe ASME SB/B98
UNS C65500 Alloy A
Outlet
Size
NPS |
Dimensions |
| A |
B |
C |
Brazing
Surface |
F-Min
MIL-F-1183 |
| 1/4 |
11/16 |
1 |
9/16 |
0.188 |
0.700 |
| 3/8 |
13/16 |
1-1/4 |
3/4 |
0.190 |
0.855 |
| 1/2 |
1 |
1-7/16 |
7/8 |
0.220 |
1.020 |
| 3/4 |
1-1/16 |
1-3/4 |
1-1/8 |
0.240 |
1.250 |
| 1 |
1-1/4 |
2-1/8 |
1-7/16 |
0.270 |
1.535 |
| 1-1/4 |
1-5/16 |
2-9/16 |
1-3/4 |
0.300 |
1.900 |
| 1-1/2 |
1-3/8 |
2-7/8 |
2 |
0.330 |
2.160 |
| 2 |
1-1/2 |
3-1/2 |
2-9/16 |
0.360 |
2.675 |
| 2-1/2 |
1-13/16 |
4-1/8 |
3 |
0.384 |
3.215 |
| 3 |
2 |
4-13/16 |
3-11/16 |
0.442 |
3.880 |
| 4 |
2-1/4 |
6 |
4-3/4 |
0.476 |
4.940 |
| 5 |
2-5/8 |
7-1/16 |
5-9/16 |
0.656 |
6.163 |
|
